# Using nettskjemar
## - for transparent data flows -
### Athanasia Monika Mowinckel
### 03.06.2021

---

background-image: url("https://drmowinckels.io/about/profile.png")
background-position: right bottom
background-size: auto 100%
class: middle, dark

[<i class="fa fa-twitter fa-2x" aria-hidden="true"></i> @DrMowinckels](https://twitter.com/DrMowinckels)
[<i class="fa fa-github fa-2x" aria-hidden="true"></i> Athanasiamo](https://github.com/Athanasiamo)
[<i class="fa fa-globe fa-2x" aria-hidden="true"></i> drmowinckels.io/](https://drmowinckels.io/)

- Staff scientist
- PhD in cognitive psychology
- Software Carpentry Instructor

]

---

---

# What is Nettskjema?

- self-service survey tool developed by UiO

- can be used for simple questionnaires, sign up forms, and multiple choice

- can be used for collecting sensitive data (connects to TSD)

- a high degree of security and privacy

- designed for accessibility

.footnote[
source: [Nettskjema UiO webpages](https://www.uio.no/english/services/it/adm-services/nettskjema/)
]
---

# What do we use nettskjema for?

- questionnaires sent to participants

- "punching" data from in-person tests

- test / mri logs

- file uploader for collaborators directly to TSD

- digital consent forms using ID-porten

- automatic data upload from test-computers to TSD through the API

---

# The nettskjema portal

- where you can set settings for your form, like access rights, response types etc.

- where you can download responses, codebook and SPSS syntax for data conversion
]

- has limited meta-data to the forms

- if you have many forms active you want data from, data retrieval can be cumbersome
]

---

# The nettskjema API

- application programming interface, a way to programatically interact with a service or program

- enables us to interact with nettskjema through programs like python, R, bash etc.

- makes it possible to create automatic pipelines for data handling
]

- pull information
  - about forms (meta-data and codebooks)
  - response data

- push information
  - create forms automatically
  - push data automatically to an existing form

]

---

# What do we need?

.pull-left[
- an API user
  - a special instance of your uio username that you specifically grant access to your forms
]

.pull-right[
- an API access token
  - which grants you secure access to the forms that you have provided api-user access to
]

---
class: middle, center, dark

# Live demo
## open RStudio

???

```r
library(nettskjemar)
nettskjema_user_create()
nettskjema_token2renviron("token",
                          "testapi")
nettskjema_renviron_edit()
nettskjema_token_expiry()
```

- use uio username for main API access user
- the `nettskjema_token2renviron()` opens your user Rprofile, or creates it if it does not exist. It also makes sure this file is only readable by your user.
- keep your token safe! This token enables access to forms the corresponding API user has access to. Treat it as a secure password.

---
class: center, dark

# Exercise
## Create an API user and add the access token to your Renviron
## Check your IP address on [whatismyipaddress.com](https://whatismyipaddress.com/)

---
# How do we access the data?

- we have now our user _and_ token

- we need to give our API user access to the forms we want API access from

???
This process of having a separate API and uio user is cumbersome, but that is how the system is set up now.
I know USIT are working on a potential other solution, but that is not available now. So we need to make sure
our API user has access to all the forms we want it to have access to.

---
# Get nettskjemar dev-version

A bug in the code found while working on this workshop was fixed yesterday. To work with the newest version of this
package install by

```r
# Enable my development universe
options(repos = c(
    athanasiamo = 'https://athanasiamo.r-universe.dev',
    CRAN = 'https://cloud.r-project.org'))

# Install it
install.packages('nettskjemar')
```

---
class: middle, center, inverse

# Answer the test form!
## [https://nettskjema.no/a/205451](https://nettskjema.no/a/205451)

---
class: middle, center, dark

# Live demo
## Go to [nettskjema.no](https://nettskjema.no/user/form/preview.html?id=205451#/)

???
Add inn all course users based on your cheat sheet.
everyone should have access to this form, make note of the nettskjema ID in the url.

---

# Accessing the data

```r
library(nettskjemar)
nettskjema_get_data(205451)
```

```
## Form 205451 has 3 responses to download.
```

```
## # A tibble: 3 x 8
##   form_id submission_id ncourse_01 ncourse_02 ncourse_03   ncourse_04 ncourse_05
##     <dbl> <chr>         <chr>      <chr>      <chr>        <chr>      <chr>
## 1  205451 14353700      coffee     coffee     humans       humans     2
## 2  205451 14353693      food       coffee     humans       dolphins   5
## 3  205451 14353688      42         towel      dolphins;mi… dolphins   4
## # … with 1 more variable: ncourse_06 <chr>
```

???
data! Notice that we have the data according to the codebook.

---

# Accessing the data
### working with checkboxes

```r
nettskjema_get_data(205451, checkbox_delim = "-")
```

```
## Form 205451 has 3 responses to download.
```

```
## # A tibble: 3 x 8
##   form_id submission_id ncourse_01 ncourse_02 ncourse_03   ncourse_04 ncourse_05
##     <dbl> <chr>         <chr>      <chr>      <chr>        <chr>      <chr>
## 1  205451 14353700      coffee     coffee     humans       humans     2
## 2  205451 14353693      food       coffee     humans       dolphins   5
## 3  205451 14353688      42         towel      dolphins-mi… dolphins   4
## # … with 1 more variable: ncourse_06 <chr>
```

???
This default can be altered through an extra argument.

---

# Accessing the data
### working with checkboxes

```r
library(tidyverse)
```

```
## ── Attaching packages ─────────────────────────────────────── tidyverse 1.3.1 ──
```

```
## ✓ ggplot2 3.3.3     ✓ purrr   0.3.4
## ✓ tibble  3.1.2     ✓ dplyr   1.0.6
## ✓ tidyr   1.1.3     ✓ stringr 1.4.0
## ✓ readr   1.4.0     ✓ forcats 0.5.1
```

```
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## x dplyr::filter() masks stats::filter()
## x dplyr::lag()    masks stats::lag()
```

```r
nettskjema_get_data(205451, checkbox_type = "list") %>%
  unnest(ncourse_03)
```

```
## Form 205451 has 3 responses to download.
```

```
## # A tibble: 4 x 8
##   form_id submission_id ncourse_01 ncourse_02 ncourse_03 ncourse_04 ncourse_05
##     <dbl> <chr>         <chr>      <chr>      <chr>      <chr>      <chr>
## 1  205451 14353700      coffee     coffee     humans     humans     2
## 2  205451 14353693      food       coffee     humans     dolphins   5
## 3  205451 14353688      42         towel      dolphins   dolphins   4
## 4  205451 14353688      42         towel      mice       dolphins   4
## # … with 1 more variable: ncourse_06 <chr>
```

???
There is a checkbox type of "list", which correctly returns the values chosen as a list.
When this type is unnested, you actually get more row per submission ID, because the number of chosen boxes for a participant gets expanded into several unique rows.

---

# Accessing the data

```r

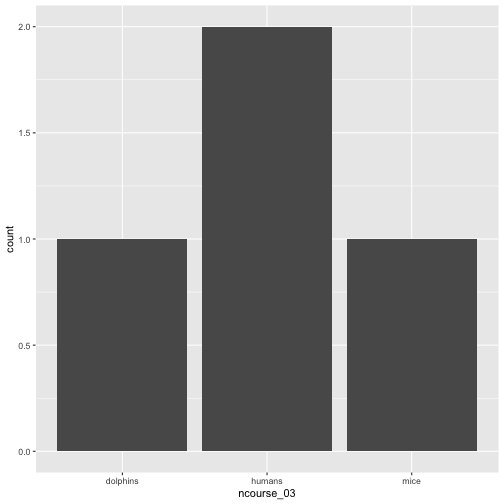

nettskjema_get_data(205451,
                    checkbox_type = "list") %>%
  unnest(ncourse_03) %>%

  ggplot(aes(x = ncourse_03)) +
  geom_bar()
```
]

```
## Form 205451 has 3 responses to download.
```

![](index_files/figure-html/unnamed-chunk-5-1.png)

]

???
This can be convenient when, for instance making a histogram in ggplot2, which automatically counts the number of occurrences of a variable.

---

# Accessing the data
### working with checkboxes

```r
nettskjema_get_data(205451, checkbox_type = "columns")
```

```
## Form 205451 has 3 responses to download.
```

```
## # A tibble: 3 x 10
##   form_id submission_id ncourse_01 ncourse_02 ncourse_03_dolph… ncourse_03_huma…
##     <dbl> <chr>         <chr>      <chr>                  <dbl>            <dbl>
## 1  205451 14353700      coffee     coffee                     0                1
## 2  205451 14353693      food       coffee                     0                1
## 3  205451 14353688      42         towel                      1                0
## # … with 4 more variables: ncourse_03_mice <dbl>, ncourse_04 <chr>,
## #   ncourse_05 <chr>, ncourse_06 <chr>
```

???
The last checkbox type returns each answer option as its own binary column.
This is more similar to what the nettskjema portal does, and might be more familiar to many.
What is great through the API is that we now have a choice in how we would prefer the data do be returned.

---

# Accessing the data
### adding dummy codes

```r
nettskjema_get_data(205451,
                    information = list(dummy = "order",
                                       text = "option"))
```

```
## Form 205451 has 3 responses to download.
```

```
## # A tibble: 3 x 18
##   form_id submission_id ncourse_01 ncourse_01_dummy ncourse_01_text ncourse_02
##     <dbl> <chr>         <chr>      <chr>            <chr>           <chr>
## 1  205451 14353700      coffee     4                Coffee          coffee
## 2  205451 14353693      food       1                Food            coffee
## 3  205451 14353688      42         2                42              towel
## # … with 12 more variables: ncourse_02_dummy <chr>, ncourse_02_text <chr>,
## #   ncourse_03 <chr>, ncourse_03_dummy <chr>, ncourse_03_text <chr>,
## #   ncourse_04 <chr>, ncourse_04_dummy <chr>, ncourse_04_text <chr>,
## #   ncourse_05 <chr>, ncourse_05_dummy <chr>, ncourse_05_text <chr>,
## #   ncourse_06 <chr>
```

---

# Saving the data

```r
galaxy <- nettskjema_get_data(205451)
```

```
## Form 205451 has 3 responses to download.
```

```r
write.table(galaxy, "data/data_2021_06_03.tsv", sep="\t", row.names = FALSE)
```

---
class: center, dark

# Exercise
## Give your API user access to one of your own forms and access the data from this form

---

# Accessing other form information
### codebooks

```r
nettskjema_get_codebook(205451)
```

```
## # A tibble: 20 x 15
##    form_id element_no question  question_descr question_codebo… question_mandat…
##  *   <dbl> <chr>      <chr>     <chr>          <chr>            <lgl>
##  1  205451 3          What is … <NA>           ncourse_01       FALSE
##  2  205451 3          What is … <NA>           ncourse_01       FALSE
##  3  205451 3          What is … <NA>           ncourse_01       FALSE
##  4  205451 3          What is … <NA>           ncourse_01       FALSE
##  5  205451 3          What sho… <NA>           ncourse_02       TRUE
##  6  205451 3          What sho… <NA>           ncourse_02       TRUE
##  7  205451 3          What sho… <NA>           ncourse_02       TRUE
##  8  205451 3          What sho… <NA>           ncourse_02       TRUE
##  9  205451 4          Who are … <NA>           ncourse_03       FALSE
## 10  205451 4          Who are … <NA>           ncourse_03       FALSE
## 11  205451 4          Who are … <NA>           ncourse_03       FALSE
## 12  205451 4          Which sp… <NA>           ncourse_04       FALSE
## 13  205451 4          Which sp… <NA>           ncourse_04       FALSE
## 14  205451 4          Which sp… <NA>           ncourse_04       FALSE
## 15  205451 5          Which bo… <NA>           ncourse_05       FALSE
## 16  205451 5          Which bo… <NA>           ncourse_05       FALSE
## 17  205451 5          Which bo… <NA>           ncourse_05       FALSE
## 18  205451 5          Which bo… <NA>           ncourse_05       FALSE
## 19  205451 5          Which bo… <NA>           ncourse_05       FALSE
## 20  205451 6          Do you h… <NA>           ncourse_06       FALSE
## # … with 9 more variables: question_order <int>, answer_order <chr>,
## #   answer_option <chr>, answer_codebook <chr>, answer_preselected <lgl>,
## #   answer_correct <lgl>, max_selected <int>, question_preselected <lgl>,
## #   question_rangemarks <lgl>
```

---

# Accessing other form information
### codebooks

```r
nettskjema_get_codebook(205451, as_is = TRUE)
```

```
## # Nettskjema raw codebook for form 205451
##
## no. questions: 6
## no. answers: 12
```

---

# Accessing other form information
### codebooks

```r
nettskjema_get_codebook(205451, as_is = TRUE) %>%
  nettskjema_write_codebook("data/codebook_205451.json")

nettskjema_get_codebook(205451) %>%
  nettskjema_write_codebook("data/codebook_205451.tsv")
```

---

# Accessing other form information
### meta-data

```r
meta <- nettskjema_get_meta(205451)
meta
```

```
## # Nettskjema metadata for form 205451
##
## title: Test form for nettskjemar course
## language: en
## opened: 2021-06-01
## respondents: ALL
## contact: athanasm@uio.no
## codebook: TRUE
## personal_data: FALSE
## sensitive_data: FALSE
## editors: 2
## no. elements: 6
```

---

# Accessing other form information
### meta-data

```r
meta <- nettskjema_get_meta(205451, as_is = TRUE)
meta
```

```
## # Nettskjema raw metadata for form 205451
##
## title: Test form for nettskjemar course
## languageCode: en
## createdDate: 2021-06-01T08:38:10.000+0200
## respondentGroup: ALL
## editorsContactEmail: athanasm@uio.no
## codebookActivated: TRUE
## collectsPersonalData: FALSE
## sensitivePersonalDataCollected: FALSE
## editors: 2
## no. elements: 6
```

---

# Accessing other form information
### meta-data

```r
nettskjema_get_meta(205451, as_is = TRUE) %>%
  nettskjema_write_meta("data/meta_205451_raw.json")

nettskjema_get_meta(205451) %>%
  nettskjema_write_meta("data/meta_205451.json")
```

---

# Things to improve

- the linear scale element is not yet supported

- working within TSD, requires a whole new way of working!

- pushing data/forms to nettskjema

- bug fixes that I know of

- bugs I don't know of yet

- report bugs or unexpected behaviour to me [on github](https://github.com/LCBC-UiO/nettskjemar/issues)

    - if you have some experience in package development, I'm happy for help in documentation, improvements in functionality etc.

---

---
background-image: url("https://drmowinckels.io/about/profile.png")
background-position: right bottom
background-size: auto 100%
class: middle, dark

- Staff scientist
- PhD in cognitive psychology
- Software Carpentry Instructor

]
