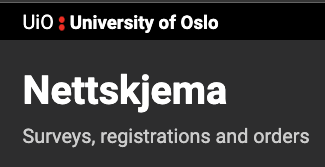

Nettskjema TSD Pipeline

Athanasia M. Mowinckel

What do we collect?

• questionnaires answered by participants themselves

• data punched by our staff (like from cognitive testing)

• logs entered by our staff (like logs from MRI, EEG, VR etc)

• computer tasks (mirror tracing task sends data to TSD via nettskjema)

• files uploaded by our partners (Vitas send results from DBS through nettskjema)

Why do we use it?

• anyone with a smartphone and internet can access forms to input data (i.e. we can use it “on the go”, for instance at the scanner)

• data entry can be standardised, so that there is less possibility to enter incorrect or impossible data

• data is sent directly to TSD, so the data is always secure and is not easily lost

• we dont have issues with multiple people working on the same local file, locking it for editing by others

Where do they go?

• Almost all are connected directly to TSD, and are sent to p23 in encrypted safe form on a per response basis.

• The encrypted data is stored at /tsd/p23/data/durable/nettskjema-submissions/5xxx/ , where each form has its own subfolder

  • We need to decrypt and store the data elsewhere for further use

How can I access the data?

There are two basic ways of interacting with the incoming nettskjema data:

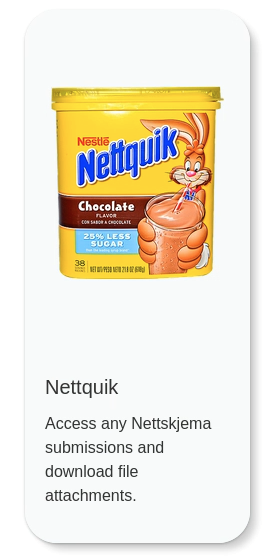

Nettquick

• Makes the form data available almost immediately

• Makes no changes to the data

• Data stored in a temporary database

How can I access the data?

There are two basic ways of interacting with the incoming nettskjema data:

Nettskjema pipeline

• Slower (runs every couple of hours)

• Replaces hash-keys with IDs and has a system for correcting errors

• Data stored in files

Pipeline in short

• Single response data come in encrypted to TSD

• Files are copied to a new safe location

  • /tsd/p23/data/durable/nettskjema-submissions/cleaned

• Data are decrypted

• Single responses are combined into larger data set

• Ids replace the SHA hash keys (suffix wids)

• Edits are applied from edits-xxxxx.json (suffix ed )

Pipeline is run as services

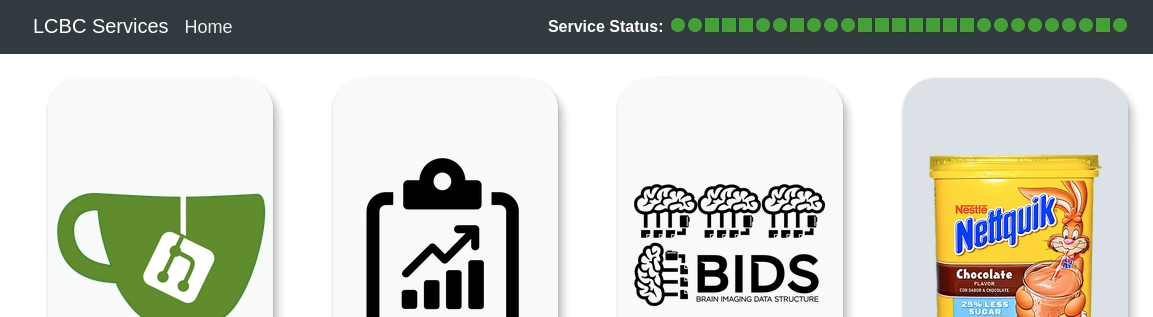

LCBC nettskjema services

• run on timers

• All based in R

• services run:

  • nettskjema_decrypt

  • nettskjema_flag_depression

  • nettskjema_ids2consent

  • nettskjema_merge_[project]

What are these merge things?

• Each project (and wave in most cases) get their own merge script

• These merge all nettskjemas for that project to a large file

  • for error and data incompatibility checks

  • These also produce the overview and inconsistent files found in the data inspector

• This data forms the basis of all data that get entered into the NOAS from nettskjema

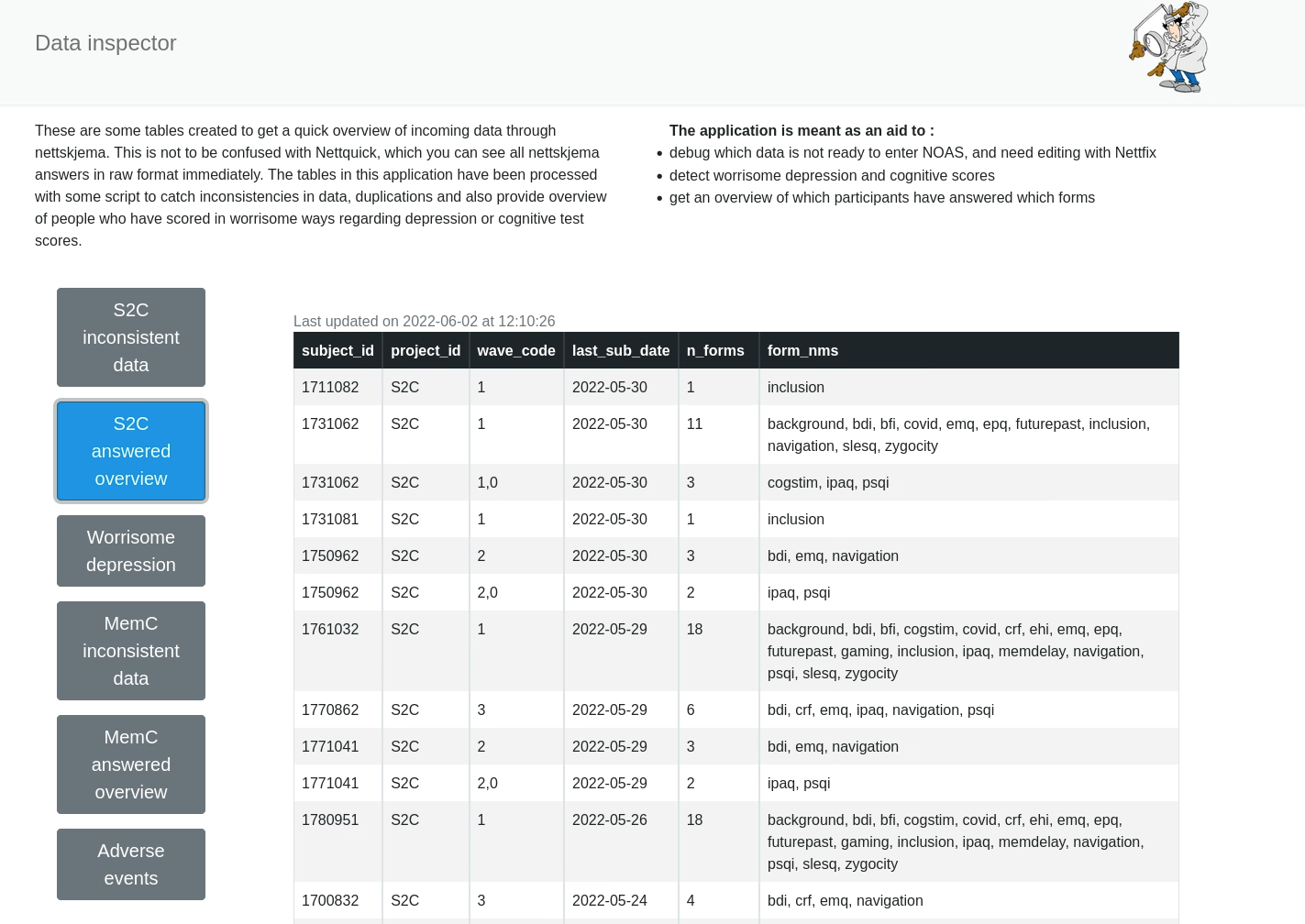

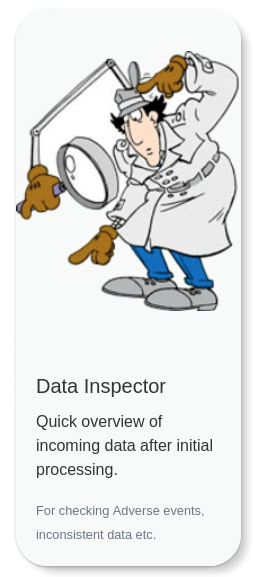

What is the data inspector?

What if there are problems with the nettskjema data?

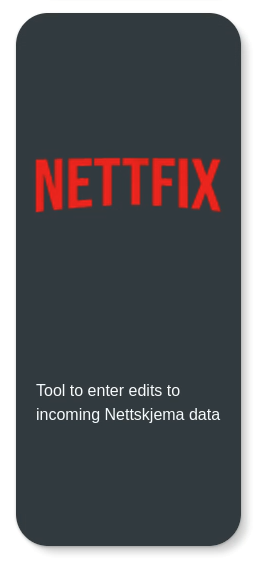

• An application to alter nettskjema data that are incorrect
  • usually only used for correcting Ids, Birthdates and sex
• If data is already in the NOAS, then fixing it on Nettfix will not fix the data
  • we are working on another application for that
  • Currently, notify Mo of errors for a manual fix for NOAS

So, what happens then?

• Any correction in a nettskjema, is stored in an edits file for that specific nettskjema

  • edits-xxxx.json

• It logs the change, a comment and the timestamp of the change

• If the same element is changed multiple times, a history log of the changes is also created.

• The nettskjema decrypt service will apply the changes next time it runs

How does nettskjema data end up in NOAS?

• Happens with human interaction

  • this cannot be fully automated, all data entering the NOAS has a human making sure the data is OK to enter there

• The process may depend on the project, but in general, a script is made to split up the data into NOAS-compatible tables

Pipeline in short

• Single response data come in encrypted to TSD

• Files are copied to a new safe location

  • /tsd/p23/data/durable/nettskjema-submissions/cleaned

• Data are decrypted

• Single responses are combined into larger data set

• Ids replace the SHA hash keys (suffix wids)

• Edits are applied from edits-xxxxx.json (suffix ed )
